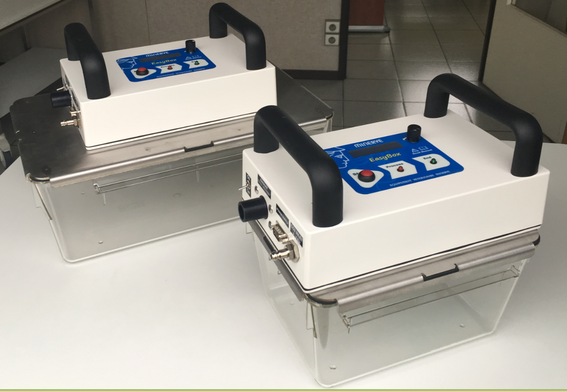

CO2 Easy Box System for Euthanasia

Post-experimental Rodents Euthanasia device

Our new CO2 unit simplifies the euthanasia procedure. Particularly the prevention of stress in the animals.

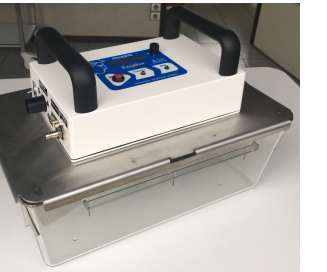

​The Easy Box module is directly placed to the standarized Tecniplast cage box of type II or type III.

The procedure of CO2 euthanasia is prepared less stressful for the animal and will be perfomed according
to the selected cage volume. These requirements correspond to the 2010/63 / EU standards, which
​regulates the policy for experiments with the handling of the animal.
At the end of the cycle, the evacuation of the CO2 gas will be extracted automatically from the outlet port
of the CO2 Easy Box to a Soda canister or a wall mount CO2 inlet evacuation system.
The usage is very easy!

How does the system work?

The controller has an LCD screen and a simple keypad for selecting the settings and storage of multiple
programs. The animals and the cage volume can be set respectively. A single button now starts the cycle.
If a problem accurs during the procedure, the program stops the operation automatically.









ORDER NUMBERS :

PS-0660 set   With Easy Box module CE, external power supply 220 - 240 V / 1.0 A 50-60 Hz                                                          device Input 24 VDC, power cord, connecting hose CO2
There are two Tecniplast Box adapters are available:
PS-0661   Box Adapter with seals, Type III cage, size 425 x 266 x 185 mm
PS-0662   Box Adapter with seals, type II cage, size 267 x 207 x 140 mm
                (Please specify this when ordering)
PS-0663   Connecting hose CO2 Easy Box module to the Absorber
PS-0664   CO2 soda canister (single use)
PS-0665   CO2 soda canister container with holder capacity is approx. 5 liters
PS-0667   Cage tecniplast type lll

​TECHNICAL DATA
Weight:                            2,5 kg (depending on the Box adapter type ll or type lll)
Overall dimensions:        275 x 175 x 130 mm
Electrical power input:    24 VDC - 1A
CO2 input:                       1 - 5 Bar (15 - 70 PSI)
Extraction:                       Diameter 22 standard hose

Instruction manual CO2 Easy Box System for Euthanasia

co2_easy_box_system_german_version.pdf
File Size: 2301 kb
File Type: pdf
Download File

co2_easy_box_system_english_version.pdf
File Size: 2362 kb
File Type: pdf
Download File


TEMSEGA MultiOne CO2 euthanasia inducer
for confined cages

Comes with adaptation for one type of cage and both gas extraction systems. Available in several versions to meet your needs.
This product complies with European directive 2010/63/EU and the AVMA guideline.

Advantages
 - Adapters for type 2 and type 3 cages
 - Automatic start function by cage detection

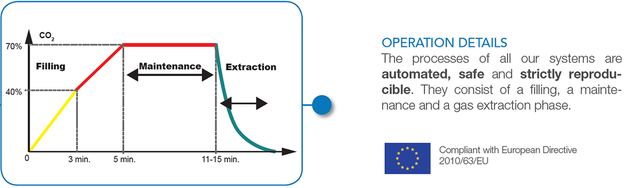

 - Automatic session with induction phase, euthanasia   phase and purge phase
 - Automatic flow adjustment for type 2 or type 3

Technical specifications

Adaptive cycles:

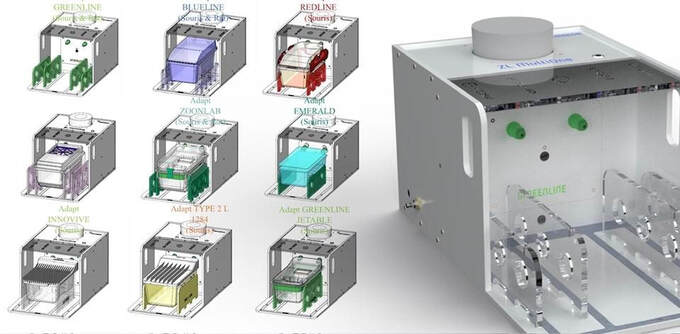

Duration of the session: 6 minutes for cage type 2, 7 minutes for type 3 (depending on the model) Specific adapters for Greenline, Blueline (Tecniplast), Nexgen (Allentown), Zoonlab, Emerald and more to come.
Interface:
LED indicators for session ready, in progress or completed.
Monogaz:
Connector for CO2 bottle or 2 bar pressure network.
Recovery system:
Air eliminator to purge CO2 from the cage at the end of the session. Controlled injection and suction to limit CO2 leaks (<1000ppm).
