Physitemp temperature controller unit TCAT System

The heating plate is controlled by a Physitemp temperature controller unit and a rectal probe is controlling the body temperature on mice or rats. The size of the heating plate fits our standard surgery table PS-0451 or PS-0451-FST

Order-Nr. TCAT-2LV    Temperature controller T-CAT
Order-Nr. HP-1M         Heating plate for T-CAT System
Order-Nr. RET-3 ISO   Isolated Rectal Probe for mice
Order-Nr. RET-2 ISO   Isolated Rectal Probe for rats
Instruction manual for Surgery Table
instruction_manual_standard_surgery_table_and_t-cat_system_12.10.2015.pdf
File Size: 827 kb
File Type: pdf
Download File


RWD Temperature Controller unit

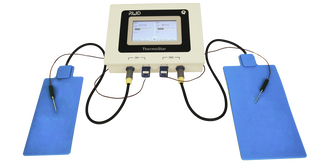

combi-vet® RWD Thermostar Temperature controller for mice & rats and reptiles
Thermostar Temperature Controller with Rectal probe
available with 2 heating pads
The new generation of Thermostar temperature maintenance device USES a 4.3-inch color LCD touch screen, beautiful appearance, lightweight, easy to operate, real-time display of temperature measurement, temperature setting, heating state, running state, fault warning and other functions, and can give two small animals at the same time, and independent operation. The main control module monitors the temperature of heating pad and anal temperature probe in real time, and the independent circuit controls the heating pad and anal temperature probe respectively to achieve double safety protection, ensuring the stability and safety of the instrument.
Features

Real-time display of the working status of the heating pad, and monitor
the working state of every channel show:  IDLE WARNING, STAND BY, WORKING

Technical data:
Heating rate: 20 - 45 C 0.1 C resolution, Degrees Celsius or in Fahrenheit can be switched
Power supply: 100 - 240V,  50/60 Hz  CE/UL approved
Control unit size: L205 x W148 x H80 mm
Control unit size weight: 1,3 kg
TO ORDER:
Complete System as set:

Order-Nr. 69020 ThermoStar Temperature,     Controller 69023 pad included
Order-Nr. 69026 ThermoStar Temperature,     Controller 69024 pad included

Order-Nr. 69027 ThermoStar Temperature,     Controller 69025 pad included
Temperature probe
Order-Nr. 69022 Temperature Probe
1,5 mm diameter 30mm length, the length of the probe is 200cm
Heating pad
Order-Nr. 69023 Heating pad 12,0 x 20,5 cm
Order-Nr. 69024 Heating pad  9.0 x  17.0 cm   all black connecting cables are 150 cm long
Order-Nr. 69025 Heating pad  7.0 x  10.0 cm
