combi-vet® Overview
Especially designed for inhalation of anesthetic substances of domestic pets and other small animals, the combi-vet® is lightweight, compact and robust base- device. It can be used either on a rail mount system, on our anesthesia machine with storage cabinet or as a standalone unit on a table. As this device is transportable, it can be moved from one place to another in no time and can be immediately operational.
The white 4 mm thick aluminum rack has a special paint coat to protect against stains from aggressive anesthetic liquids and solvents. In the back of the rack, two universal attachment blocks are mounted to connect the device easily to any rail systems of sizes 25 x 8 mm up to 35 x 10 mm.

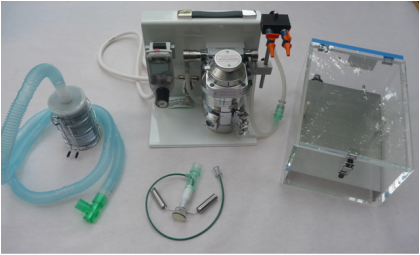

By adding all the modular elements such as our CO2 absorber, the anesthesia unit with storage cabinet and/or our Bain System to the combi-vet® base device, you have as well as a complete, simple but efficient anesthetic device. Each unit is individually available and can complete or replace existing or obsolete equipment.
The white 4 mm thick aluminum rack has a special paint coat to protect against stains from aggressive anesthetic liquids and solvents. In the back of the rack, two universal attachment blocks are mounted to connect the device easily to any rail systems of sizes 25 x 8 mm up to 35 x 10 mm.
By adding all the modular elements such as our CO2 absorber, the anesthesia unit with storage cabinet and/or our Bain System to the combi-vet® base device, you have as well as a complete, simple but efficient anesthetic device. Each unit is individually available and can complete or replace existing or obsolete equipment.

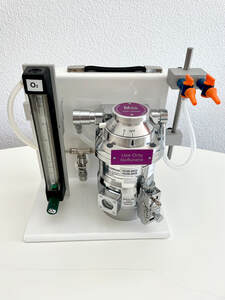

combi-vet® Analog Anesthesia machine 0 - 4 lpm and 0 - 10 lpm
Size: W 260 mm x H 260 mm x D 180 mm with TEC 3 Vaporizer new, 0.1 - 4.0 l/pm Flowmeter Parker-Porter and overflow valve for safety security, Weight: approx. 11 kg Order-Nr. CV 30-301-A
same unit but with mounting brackets for T-Rail System Order-Nr. CV 30-301-H
same unit but with mounting brackets for T-Rail System Order-Nr. CV 30-301-H
|
|

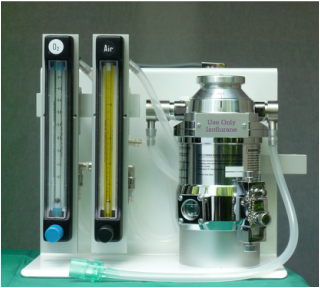

combi-vet® O2/N20 Version with Vapor or TEC 3 Vaporizer
Our 02 und N20 inhalation anesthesia apparatus is the ideal solution for research and veterinary use, where the application of N20 nitrous-oxide is mandatory.
The standard machine will be delivered with a Dräger Vapor 19.3 Isoflurane or a TEC 3 Vaporizer. Other vaporizer types are available on request. It can be used either on a T-rail mount system, on our anesthesia machine with storage cabinet or as a standalone unit on a table. As this device is transportable, it can be moved from one place to another in no time and can be immediately operational.
Size: W 380 mm x H 260 mm x D 180 mm with TEC 3 Vaporizer or Vapor 19.3 0.1 - 4.0 l/pm Flowmeter Parker-Porter 02 and AIR, overflow valve for safety security, Weight: approx. 13 kg
Order-Nr. CV 30-510 Order-Nr. CV 30-510 D-H
The standard machine will be delivered with a Dräger Vapor 19.3 Isoflurane or a TEC 3 Vaporizer. Other vaporizer types are available on request. It can be used either on a T-rail mount system, on our anesthesia machine with storage cabinet or as a standalone unit on a table. As this device is transportable, it can be moved from one place to another in no time and can be immediately operational.
Size: W 380 mm x H 260 mm x D 180 mm with TEC 3 Vaporizer or Vapor 19.3 0.1 - 4.0 l/pm Flowmeter Parker-Porter 02 and AIR, overflow valve for safety security, Weight: approx. 13 kg
Order-Nr. CV 30-510 Order-Nr. CV 30-510 D-H
combi-vet® O2/N20/AIR/C02 Version with Vapor 19.3 Dräger Vaporize
Our 02/N20/AIR/C02 inhalation anesthesia apparatus is the ideal solution for research and veterinary use, where the application of AIR as well the N20 nitrous- oxide and as well as the C02 is a requirement
Size: W 420 mm x H 260 mm x D 180 mm with TEC 3 Vaporizer newer Vapor 19.3 , 0.1 - 4.0 l/pm Flowmeter Parker-Porter 02 / N20, AIR and C02, over- flow valve for safety security, Weight: approx. 20 kg
Order-Nr. CV 30-310 02/AIR/N20/C02
Size: W 420 mm x H 260 mm x D 180 mm with TEC 3 Vaporizer newer Vapor 19.3 , 0.1 - 4.0 l/pm Flowmeter Parker-Porter 02 / N20, AIR and C02, over- flow valve for safety security, Weight: approx. 20 kg
Order-Nr. CV 30-310 02/AIR/N20/C02
|
|
|
combi-vet® Version with Vapor Isoflurane or Sevoflurane 2000 Dräger
On request the combi-vet anesthesia machine is available with a Vapor 2000 Isoflurane or Sevoflurane other types of vaporizers are also available on request.
|
|
|
combi-vet® Cabinet drawer
A trolley is also available with drawer and holder for an oxygen tank in the back of the trolley. In addition, a mounting bracket is also available to hold two Absorber charcoal filters.
Trolley standard without holder for oxygen tank with holder for 2 Aldasorber 1drawer uni-cart
Order-Nr. ITD OC.1785.902
Trolley standard without holder for oxygen tank with holder for 2 Aldasorber 1drawer uni-cart
Order-Nr. ITD OC.1785.902
|
Trolley standard with holder oxygen tank type 5 with holder for 2 Aldasorber, 1drawer uni-cart
Order-Nr. ITD OC.1786.902 |
|
Order-Nr. ITD OC.1786.902
|
